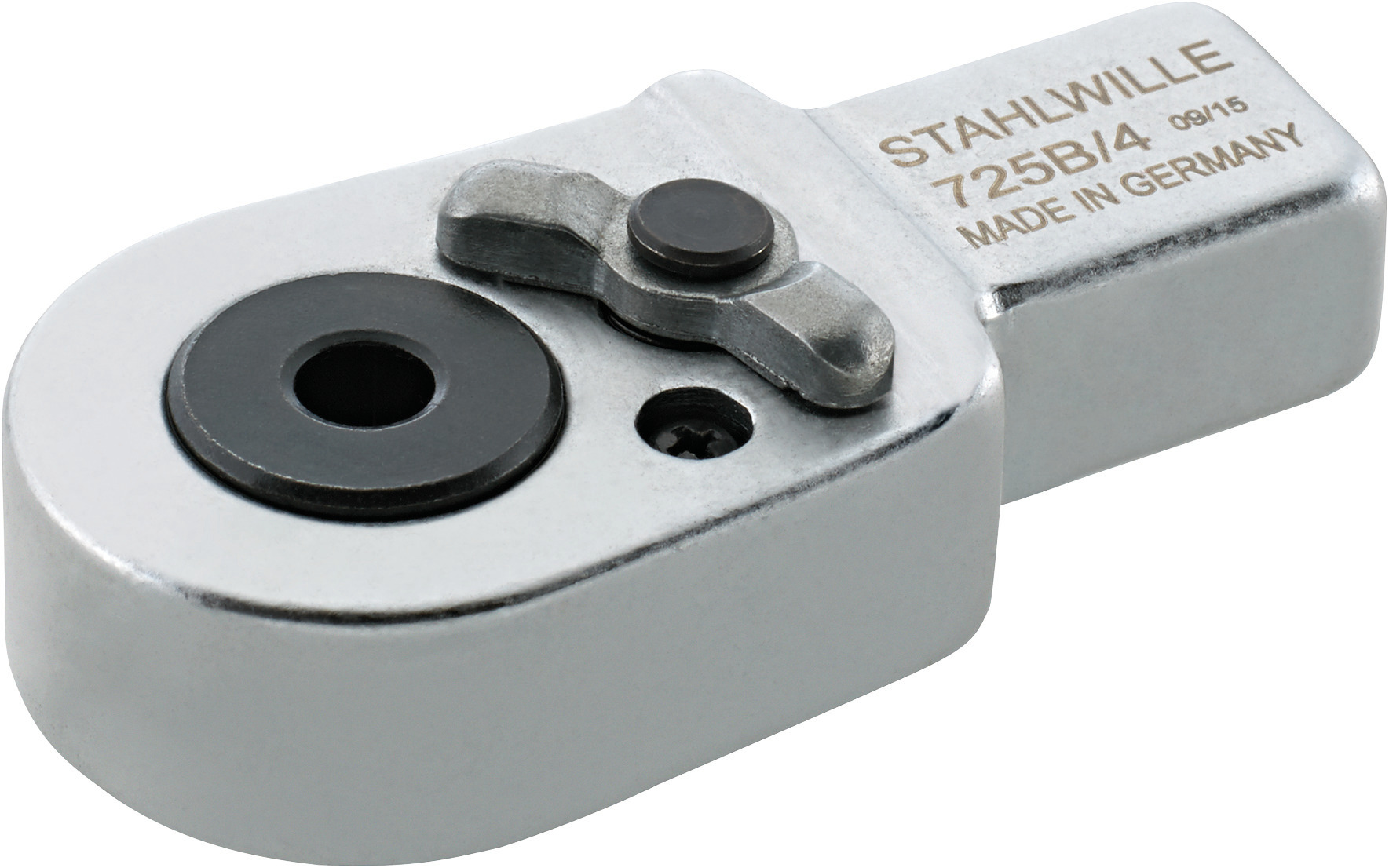

Bit ratchet insert tools

Artikel-Nr. 58255004|EAN 4018754140794

Produkt-Varianten

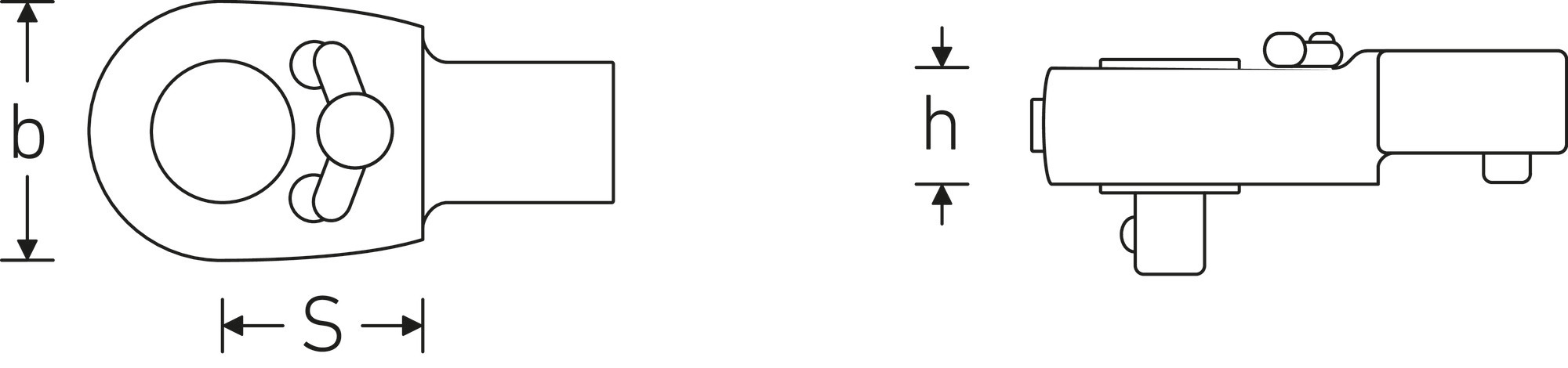

Product no.	Size	Model	Tool holder size [internal square]	Width mm (b)	Height mm (h)	Number of teeth	Working angle	internal hex drive [inch]	S	Weight (g)	Maß-Skizze
58255004	4	725B/4	9 x 12 mm	22 mm	13,6 mm	22	16.4 °	1/4 "	17,5 mm	54 g
58255005	5	725B/5	9 x 12 mm	29 mm	17,9 mm	30	12 °	5/16 "	28 mm	117 g	Jetzt entdecken

for torque wrenches with interchangeable insert system
reversible
with internal hex, 1/4" or 5/16", DIN 3126 / ISO 1173 D 6.3 or D8
for direct mounting of bits with 1/4" or 5/16" external hex C 6.3 or C 8 (size 4: 22 teeth, size 5: 30 teeth)
hex with collar-thrust spring
bits are easy to insert, lock securely into place, and can be easily pulled out again; also hex with wide groove (Form E, DIN 3126 / ISO 1173)

Bibliothek: the-correct-tightening-torque-S-58-59.pdf

PDF | 0.64 MB

Produktdatenblatt: STAHLWILLE_58255004_725B-4_en.pdf

PDF | 0.65 MB
